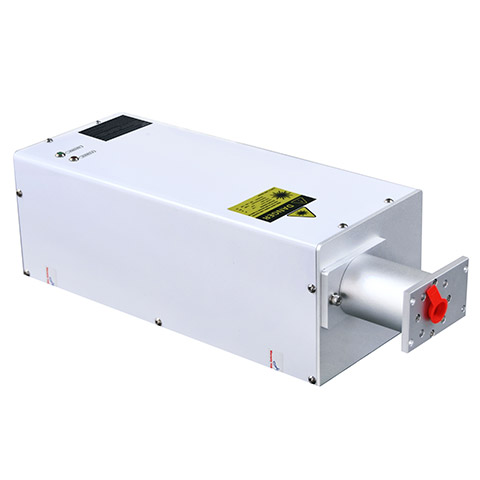

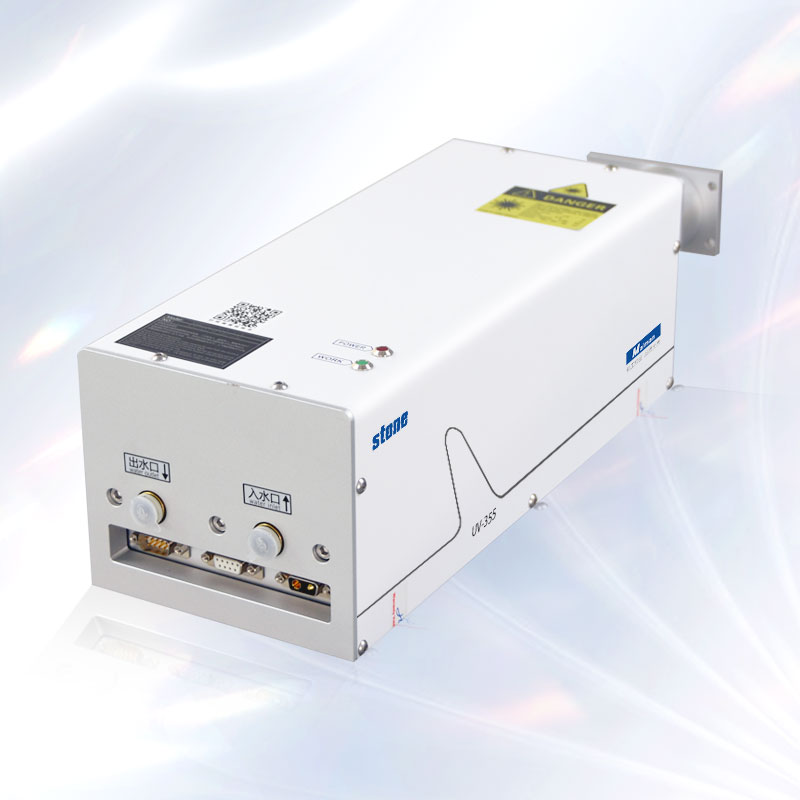

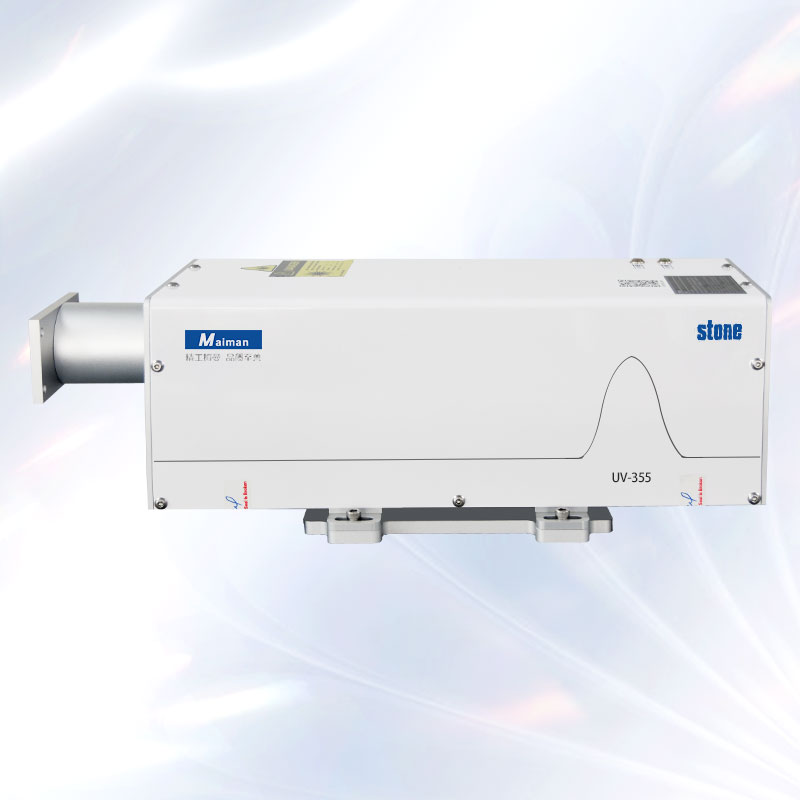

MMEPU-355-3/5/8/10/12/15

Stone series, with ultra-high cost performance, can meet 7*24 hours manufacturing; Stone plus series, stronger performance, more adaptable to complex and harsh environments.

Features:

  • Solve power attenuation and meet 7*24 hours of work;
  • The service life exceeds 20,000 hours, maintenance-free, no need for regular commissioning;
  • All-in-one machine, directly installed with galvanometer, compatible with the rack of fiber laser marking machine;
  • 3 layers of protection, protection grade IP65, more suitable for harsh working environment.

Application:

  • Jewelry marking/engraving
  • Wafer cutting/marking
  • Electronics product marking
  • Medical device marking/drilling
  • Glass marking/inner engraving
Categories: ,

Description

Model No. -Stone Series MMEPU-355-3 MMEPU-355-5 MMEPU-355-8 MMEPU-355-10 MMEPU-355-12 MMEPU-355-15
Model No.-Stone Plus Series MMEPU-355Plus-3 MMEPU-355Plus-5 MMEPU-355Plus-8 MMEPU-355Plus-10 MMEPU-355Plus-12 MMEPU-355Plus-15
Optical Characteristics
Wavelength (nm) 355nm±1nm
Average Power (W) >3W@30kHz >5W@30kHz >8W@40kHz >10W@40kHz >12W@40kHz >15W@50kHz
Single Pulse Energy (uJ) ~100uJ@30kHz ~160uJ@30kHz ~200uJ@40kHz ~250uJ@40kHz ~300uJ@40kHz ~375uJ@50kHz
Pulse Width (ns) ~15ns@30kHz ~15ns@40kHz ~15ns@50kHz
Repitition Rate 20kHz-500kHz 40kHz-500kHz 40kHz-500kHz
Pulse Stability <3% rms
Long Term Stability <±3%
Beam Characteristics
Polarization Ratio Horizontal;>100:1
Beam Diameter ~0.8mm(at exit)/~5mm(6X beam divergence)
Beam Circularity >90%
Spatial Mode TEM00, M²< 1.3
Operating Specifications
Warm-up Time <15 minutes from cold start
Electrical Requirement DC12V,350W DC15V,350W DC18V,350W
Ambient Temperature 10-35℃, RH<80%
Storage Conditions -10-40℃, RH<90%
Physical Characteristics

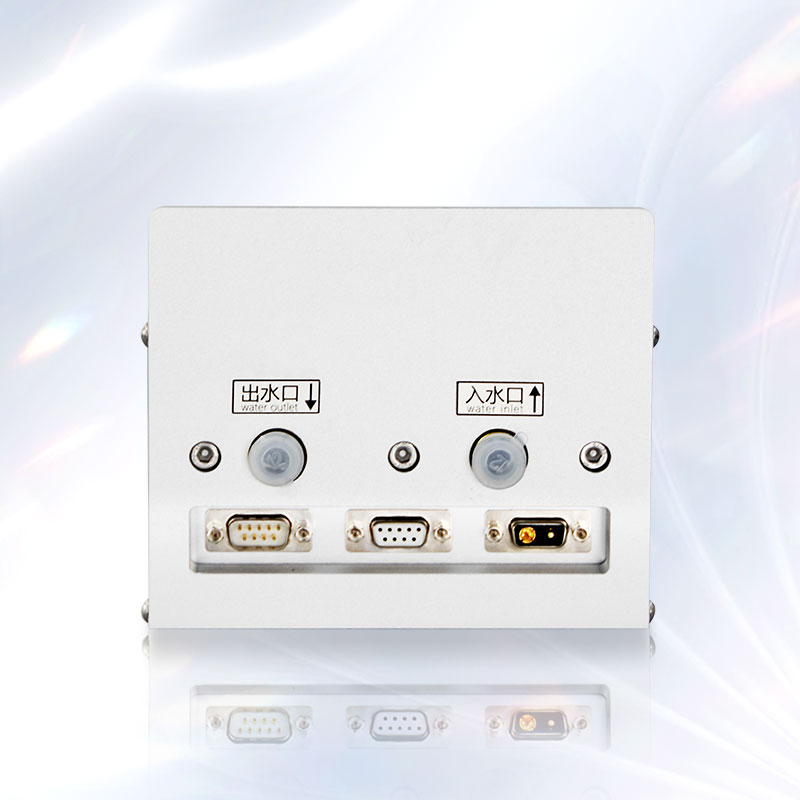

Cooling System Water-Cooled
Water Temperature (laser inlet) 25℃
