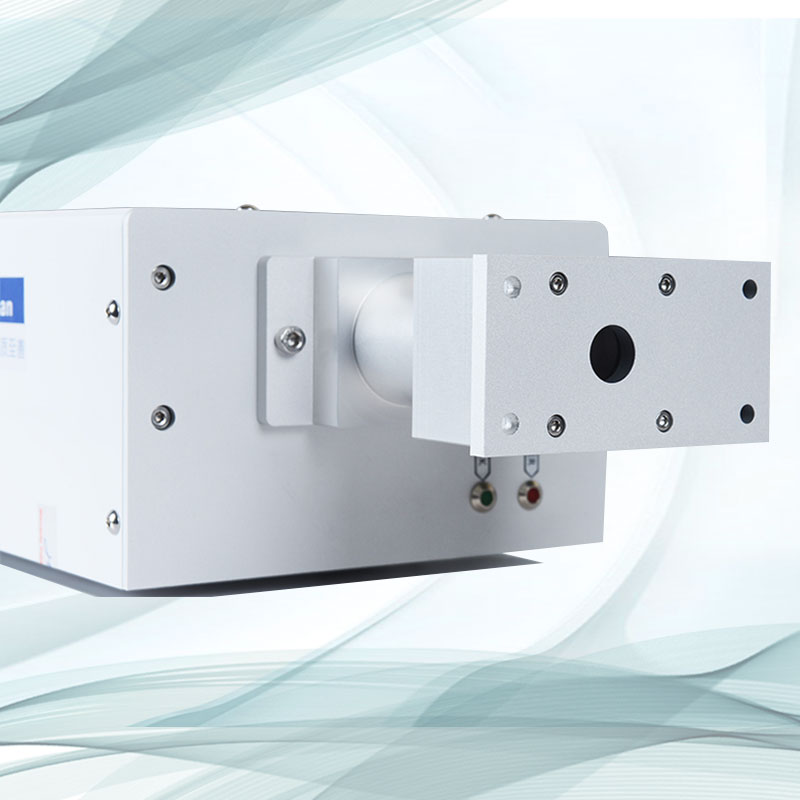

MMEPG-532-10

Superior beam quality and high laser power, capable of PCB&FPC cutting and marking easily, with more stable performance.

Features:
● The laser power 10W
● Higher power stability to ensure the consistency of long-term processing;
● Superior beam quality, capable to provide a smaller focusing spot and higher processing efficiency;
●Water-cooled, 3-layer protective shell, protection grade IP65, suitable for harsh working environment;
● All-in-one structure, no need for regular commissioning, maintenance-free and easier to integrate;
● Ultra-high stability to meet 7*24 hours of work, the service life exceeds 20,000 hours.

Application:
●Solar cell scribing
●Precision cutting
●PCB&FPC marking

Categories: ,

Description

Model No. MMEPG-532-10 MMEPG-532-15 MMEPG-532-20
Optical Characteristics
Wavelength (nm) 532nm
Average Power (W) >10W@40kHz >15W@40kHz >20W@40kHz
Single Pulse Energy (uJ) ~250uJ@40kHz ~370uJ@40kHz ~500uJ@40kHz
Pulse Width (ns) ~15ns@40kHz
Repitition Rate 20kHz-500kHz
Pulse Stability <3% rms
Long Term Stability <±3%
Beam Characteristics
Polarization Ratio Vertical;>100:1
Beam Diameter 6mm (Built in beam expander)
Beam Circularity >90%
Spatial Mode TEM00, M² <1.3
Operating Specifications
Warm-up Time <15 minutes from cold start
Electrical Requirement DC12V,350W
Ambient Temperature 10-35℃,RH<80%
Storage Conditions -10-40℃,RH<90%
Physical Characteristics
Cooling System Water-Cooled
Water Temperature (laser inlet) 25℃
