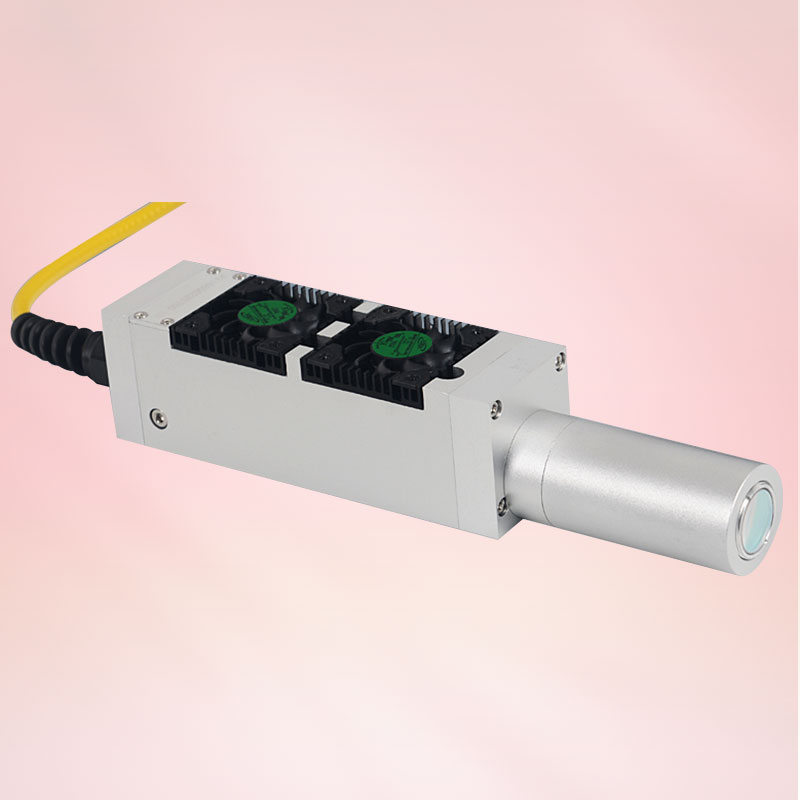

MMEPF-1064-10

The frequency 20-30kHz, the pulse width maintains at 6-8ns, lower processing heat and higher peak power can achieve alumina black marking easily, with stronger processing capacity.

Features:

  • The laser power 10W;
  • The pulse width 6-8ns, the processing heat is only 1/10 that of fiber laser, which will not cause plastic scorch;
  • The peak power>30kW, which is 10 times that of fiber laser, the processing capacity is stronger;
  • Anti-reflection function, easy to deal with high reflective materials such as gold, silver and copper;
  • Ultra-high stability, with service life over 20,000 hours.

Application:

  • Material marking – Auto parts, high reflective materials, plastic shell, etc.

Description

Model No. MMEPF-1064-5 MMEPF-1064-8L MMEPF-1064-8 MMEPF-1064-10
Optical Characteristics
Wavelength (nm) 1064nm±1nm 1064nm±1nm 1064nm±1nm 1064nm±1nm
Average Power (W) >5W@20kHz >8±1W@20kHz >8W@20kHz >10W@20kHz
Single Pulse Energy (uJ) ~150uJ@20kHz ~400uJ@20kHz ~400uJ@20kHz ~500uJ@20kHz
Pulse Width (ns) ~7ns@20kHz
Repitition Rate Uncontrollable, range 20-30kHz
Pulse Stability <3% rms
Long Term Stability <±3%
Beam Characteristics
Polarization Ratio Random polarization
Beam Diameter 7mm
Beam Circularity >90%
Spatial Mode TEM00, M²< 1.5
Operating Specifications
Warm-up Time <15 minutes from cold start
Electrical Requirement DC12V,>200W
Ambient Temperature 10-35℃,RH<80%
Storage Conditions -10-40℃,RH<90%
Physical Characteristics
Cooling System Air-Cooled
