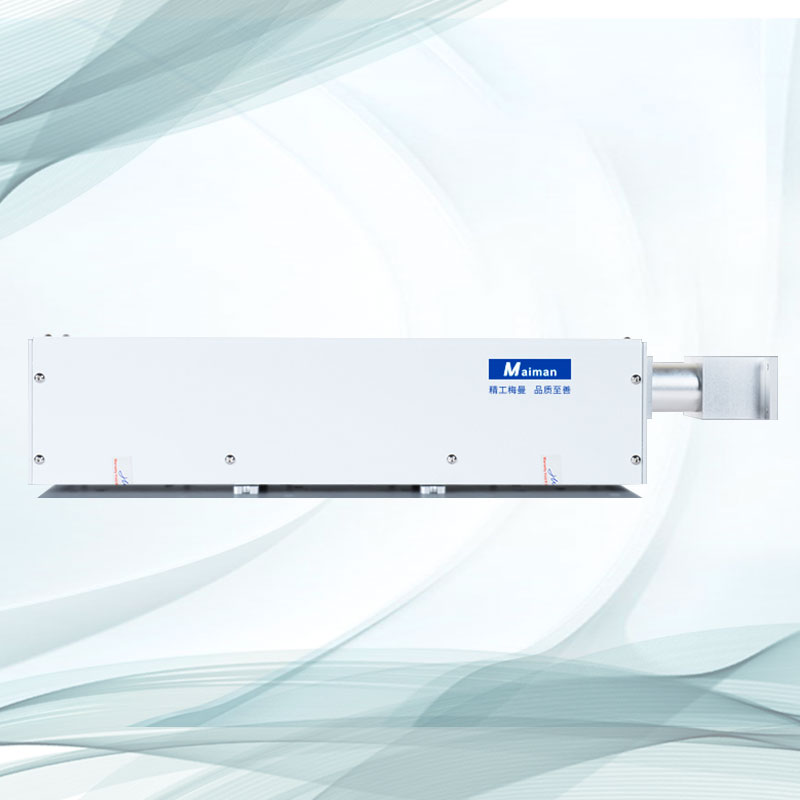

MMEPA-1064-20

Newly upgraded all-in-one structure, water-cooled, with higher beam quality, power stability and pulse stability, easier to integrate, easy to deal with the marking of transparent products and the etching of ITO films.

Features:

  • The laser power 20W;
  • Water cooling, 3-layer protective shell, protection grade IP65, suitable for harsh working environment;
  • Pulse width, power and frequency are all adjustable to meet different process requirements;
  • All-in-one structure, easier to integrate and smaller in size;
  • Ultra-high stability to meet 7*24 hours of work, with a service life> 20,000 hours.

Application:

  • Transparent key&button marking
  • ITO film etching

Description

Model No. MMEPA-1064-12 MMEPA-1064-15 MMEPA-1064-20 MMEPA-1064-25
Optical Characteristics
Wavelength (nm) 1064nm
Average Power (W) >12W@CW >15W@CW >20W@CW >25W@CW
Single Pulse Energy (uJ) ~270uJ@40kHz ~330uJ@40kHz ~450uJ@40kHz ~550uJ@40kHz
Pulse Width (ns) ~16ns@40kHz
Repitition Rate 20kHz-500kHz
Pulse Stability <3% rms
Long Term Stability <±3%
Beam Characteristics
Polarization Ratio Horizontal; >100:1
Beam Diameter 6mm(Built in beam expander)
Beam Circularity >90%
Spatial Mode TEM00, M² < 1.3
Operating Specifications
Warm-up Time <15 minutes from cold start
Electrical Requirement DC12V,350W
Ambient Temperature 10-35℃,RH<80%
Storage Conditions -10-40℃,RH<90%
Physical Characteristics
Cooling System Water-Cooled
Water Temperature (laser inlet) 25℃
