Model No. | MMD-YAG-1064-1 | |
Optical Characteristics | ||
Wavelength (nm) | 1064nm±1nm | |
Average Power (W) | >1W@12kHz | |
Single Pulse Energy (uJ) | ~30uJ@12kHz | |
Pulse Width (ns) | ~12ns@12kHz | |
Frequency Range | ~12kHz | |
Pulse Stability | <3% rms | |
Long Term Stability | <±3% | |
Beam Characteristics | ||
Polarization Ratio | Random polarization | |
Beam Diameter | ~0.8mm | |
Beam Circularity | >90% | |
Spatial Mode | TEM00, M²< 1.2 | |
Operating Specifications | ||
Warm-up Time | <15 minutes from cold start | |
Electrical Requirement | AC 220V/50Hz | |
Ambient Temperature | 10-35℃,RH<80% | |
Storage Conditions | -10-40℃,RH<90% | |
Physical Characteristics | ||
Cooling System | Air-Cooled |

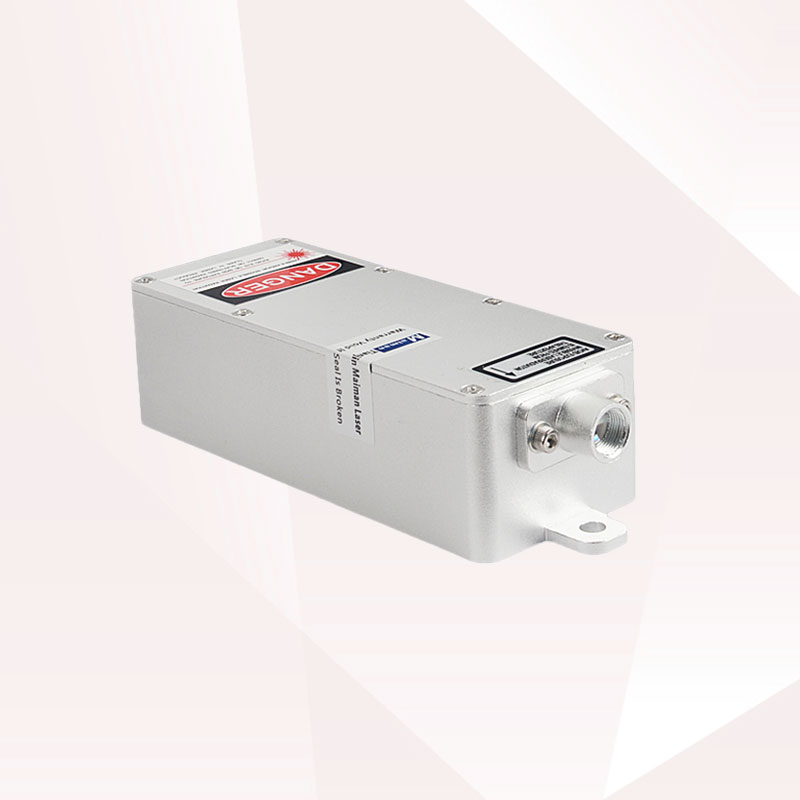

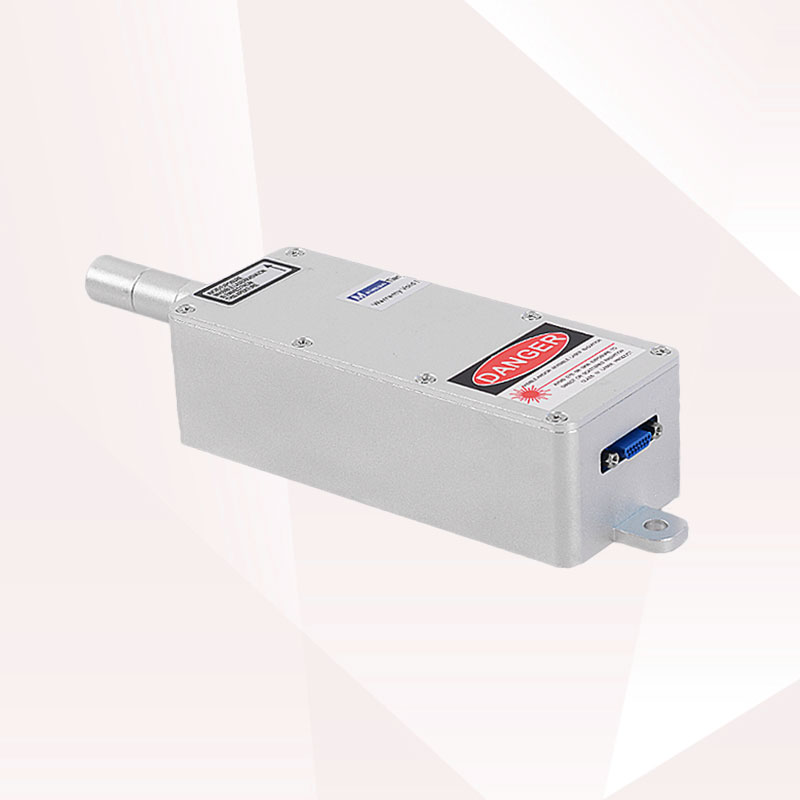

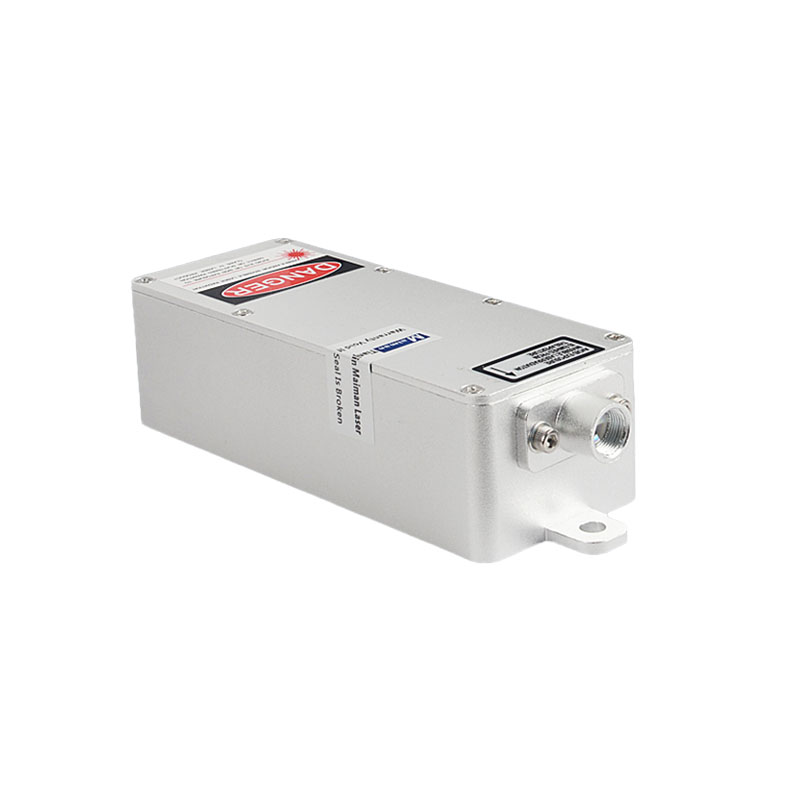

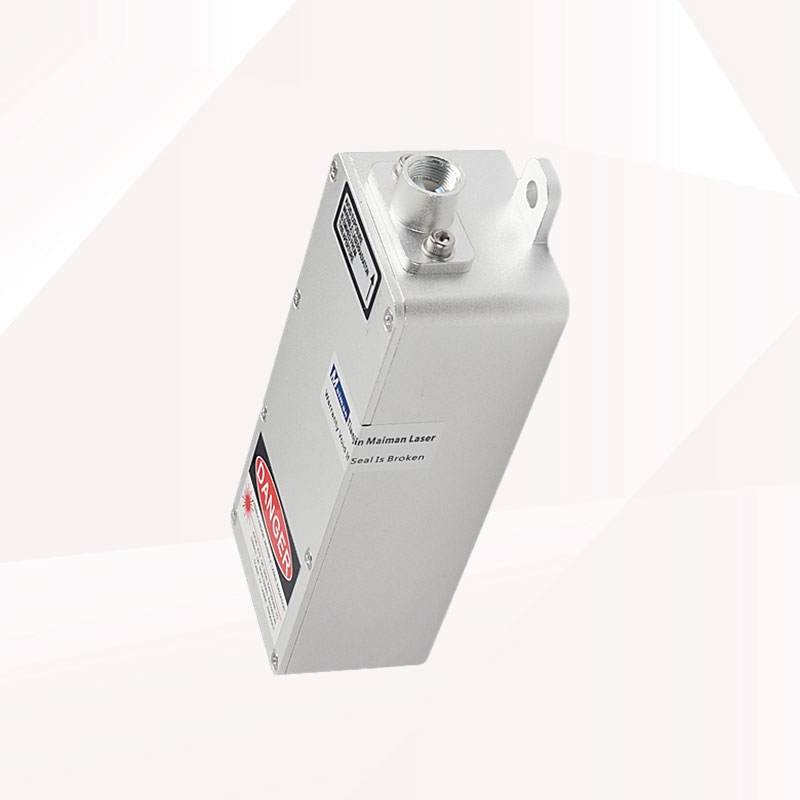

MMD-YAG-1064-1
Superior beam quality and peak power ensure to achieve clear and shallow marks on the diamond and minimize the damage to the diamond.
Features:
- The laser power 1W;
- Dual mode laser emission-parallel laser mode and focusing laser mode.
different planning machines:
- Superior beam quality, minimum laser spot <20um;
- High-precision temperature control to ensure long-term stable operation of the laser;
- Service life over 20000 hours.
Application:
- Gem planning
